Features:
- LED indicators for the audio path keys
- LED indicators for select key, line keys, and message waiting.
- Four soft key buttons and a scroll toggle bar
- Four line key buttons
- Two-way navigation and select keys
- Wideband audio
- Dual-position foot stand
-
Greyscale Graphical display 396 x 162 pixel-based with white backlight
- RJ9 interface to optional headset
- Ethernet switch
- PoE class 1
- Supported Protocols: Session Initiation Protocol (SIP)
- Wall-mountable

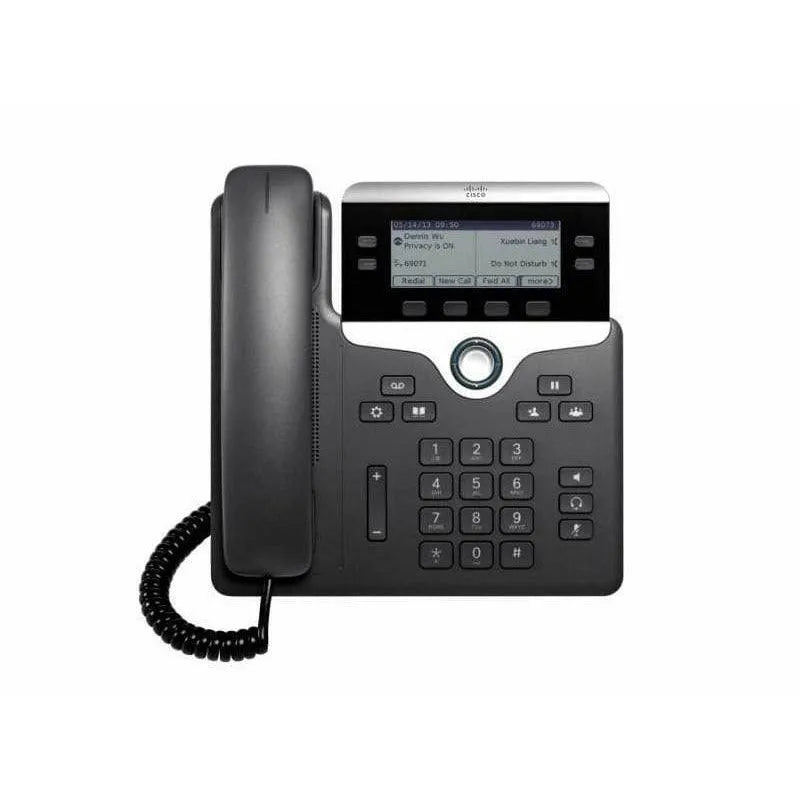

The Cisco CP-7841-K9 is an IP phone designed for use in small to medium-sized businesses. This phone provides a range of advanced features and capabilities to help enhance productivity, improve collaboration, and streamline communications.
With its high-resolution, grayscale display and intuitive user interface, the CP-7841-K9 makes it easy to access and manage calls, contacts, and other key functions. The phone supports up to four lines and includes dedicated keys for common functions such as hold, transfer, and conference, as well as a full-duplex speakerphone for hands-free conversations.
The CP-7841-K9 also includes advanced audio features, such as noise reduction and echo cancellation, to provide clear, high-quality audio for both voice and video calls. Additionally, the phone supports wideband audio and is compatible with optional Cisco headsets for even greater audio clarity and convenience.
For added flexibility, the CP-7841-K9 includes support for Power over Ethernet (PoE) and can be wall-mounted or placed on a desk or table. The phone also supports Cisco EnergyWise technology, helping to reduce energy consumption and lower costs.
The CP-7841-K9 is easy to deploy and manage, with support for Cisco Unified Communications Manager (CUCM) and Cisco Expressway. It also includes advanced security features, such as secure boot and secure voice, to help ensure that communications remain confidential and secure.
Overall, the Cisco CP-7841-K9 is a reliable and feature-rich IP phone that delivers high-quality audio and advanced functionality for small to medium-sized businesses. With its intuitive interface, advanced audio capabilities, and support for key business applications, this phone is an excellent choice for businesses looking to enhance their communication and collaboration capabilities.
The Cisco®
IP Phone 7800 Series is a cost-effective, high-fidelity voice
communications portfolio designed to improve your organization’s people-centric
communications, while reducing your operating costs.
It combines an attractive new ergonomic design with “always-on” reliability and secure encrypted communications.
The Cisco®
IP Phone 7800 Series delivers advanced IP Telephony features and crystal clear wideband audio
performance to deliver an easy-to-use, full-featured voice communications experience.
The Cisco®
IP Phone 7800 Series introduces three models to the Cisco IP Phone portfolio. From left-to-right
(Figure 1), they are:
● The IP Phone 7821 supporting two lines
● The IP Phone 7841 supporting four lines
● The IP Phone 7861 supporting sixteen lines
Figure 1. Cisco IP Phone 7800 Series
The line keys on each model are fully programmable. You can set up keys to support either lines, such as directory
numbers, or call features like speed dialing. You can also boost productivity by handling multiple calls for each
directory number, using the multi-call per-line appearance feature. Tri-color LEDs on the line keys support this
feature and make the phone simpler and easy to use.
Fixed function keys on all models give you one-touch access to service, messaging, directory, hold/resume,
transfer, and conference features. A full-duplex speakerphone lets you set up clear multi-party conferences for
flexible, productive collaboration.
The Cisco®
IP Phone 7800 Series sets a new standard in usability and delivers a context-sensitive user
experience. It features a high resolution 3.5” (396x162) greyscale display, with white backlighting for easy reading.
Localized language support, including right-to-left onscreen text, meets the needs of global users.
© 2013-2014 Cisco and/or its affiliates. All rights reserved. This document is Cisco Public Information. Page 2 of 7
The Cisco® IP Phone 7800 Series is also more energy-efficient and eco-friendly, to support your green initiatives.
Each phone supports Power-over-Ethernet (PoE) Class 1 and Cisco’s EnergyWise™, and is Energy Star certified.
A standard power-save option reduces power consumption during off-hours, to save money and maximize energy
efficiency.
The IP Phone 7800 Series portfolio is ideal for any mid-sized to large enterprise company that wants to update its
phone system from a traditional analog or digital-based system to an IP Communications system. It’s also an
excellent choice if you’re seeking to expand your voice communicatons support with your current Cisco Unified
Communications solution.
